8mm Copper Tube Vertical Expander Equipment For Different Types Coil

Name: 8mm Copper Tube Vertical Expander Equipment For Different Types Coil
Brand: OEM/ODM
Price: 1 USD

Buy cheap 8mm Copper Tube Vertical Expander Equipment For Different Types Coil product

Brand Name : OEM/ODM

Model Number : Customized

Certification : CE,ROHS ,ISO9001,ISO14001,

Place of Origin : CHINA

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 1 sets per days

Delivery Time : 20-25days

Packaging Details : wooden packing

Name : 8mm Copper Tube Vertical Expander Equipment For Different Types Coil

Weight : 1800kg

Type : Automatic electric

Voltage : 380V or as required

Welding speed : 70-120 rows/m

Mesh width : 1-2.5m

Wire diameter : 0.45-2.6mm

Application : Heat exchanger processing

Contact Now

8mm Copper Tube Vertical Expander Equipment For Different Types Coil

Specification


No.	Item	Content	Item	Content
1	Copper tube O.D. and W.T.	φ7.94*0.4	Processing(hairpin) length	Min:30
2	Pattern type	46*6	Hole pitch * Row pitch	25mm*2
3	Nozzle height (A)	11mm	Collar height(B)	1.5m
4	Flaring length(C)	6mm	Base height (L)	16mm
5	Collar angle	60°	Bullet diameter	φ7.78mm
6	Flaring diameter(D2)	φ8.16	Upper clapboard height(H1)	45mm
7	Down clapboard height(H2)	100mm	Upper clapboard pitch( U)	10mm
8	Down clapboard pitch(V)	20mm
9	Max Number of tubes expanded at one time	276
10	Expansion mode	with shrinkage
11	Expansion main power	Servo motor
12	Flaring deepth control of two to three times	Servo motor
13	Expansion height control	Rotary table to load the coil
14	Loading -coil worktable	Servo motor
15	Flaring height control of two or three times	Double oil cylinder
16	Efficiency	expanding 3-5m/min ; retracting: 7-8m/min
17	Compressed air pressure	0.4-0.6Mpa
18	Hydraulic system pressure	7Mpa
19	Locking power of upper collet	Hydraulic system
20	Hydraulic motor power	22KW
21	Cooling mode of hydraulic system	water cooling
22	Overall size	2675mm2580mm8059mm
23	Total power	≤25KW

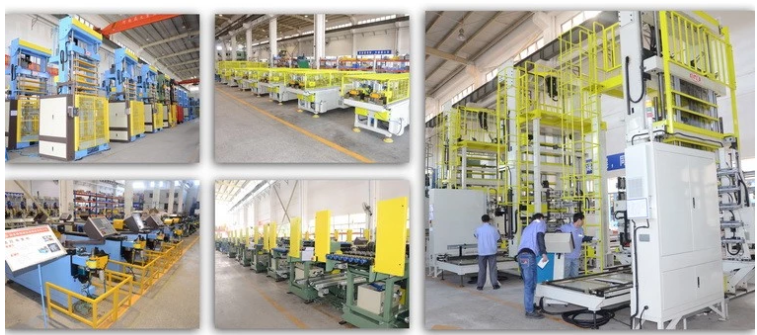

Detailed image

Features

Parameters can be adjusted automatically for different coil types.
Set-up data for each coil type can be memorized. Changeover between
different coil types is very quick.

Function

1. automatic expansion rod selection (QG)

2. automatic control of coil height (QL)

3. quick adjustment of front door panel and back door panel, automatic data memorization, quick changeover.

4. optional conveyor for auto loading and unloading.

Packing Details :

Packaging
Size	2875mm2780mm8559mm
Weight	510 KG
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Delivery Details :

45-120 days after approval of your

specification and receipt of your payment for new clients.

Port: Shanghai

Lead Time :

Quantity(Sets)	1 - 1	>1
Est. Time(days)	60	To be negotiated
